Carbon Steel Orifice Flange A carbon steel orifice flange is a specific type of flange designed for use in orifice metering applications. Orifice flanges are used to measure the flow rate of fluids within a piping system. They are commonly employed in industries such as oil and gas, petrochemical, and process engineering. When installing a carbon steel orifice flange, it is important to follow proper procedures, including accurate placement of the orifice plate and the use of appropriate gaskets. Additionally, selecting the correct orifice plate size and ensuring the flange is compatible with the process conditions are crucial for accurate flow measurement.

stainless-steel-orifice-flanges
Carbon Steel Orifice Flange

Call us now +91 9820135616 whatsapp

Email us at sales@royalsteelindia.com for quick response

SEND US YOUR REQUIREMENT

Stainless Steel Orifice Flange Specification

Specification Stainless Steel Orifice Flange
Line Size DN15 (1/2") to DN1200 (48")
Plate Types Square Edge/ Conical Entrance/ Quarter Circle/ Eccentric
Plate / Carrier Material SS 304 / SS 316 / SS 321 / UNS S31803
UNS S32760 And UNS S31254
Alloy 400 / 625 / 825 / C276
Titanium/ A105N / A350 LF2
Flange Equipment Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc
Coating Anti-rust Paint/ Zinc Plated/ Oil Black Paint/ Yellow Transparent/ Cold and Hot Dip Galvanized
Application Bitumen upgraders
Heavy oil refineries.
Nuclear power (mostly seamless).
Petrochemicals and acids.
Thickness Sch 10S To SCH 120
Supporting Material Gasket/ Ring Joint/ Flange Bolts
ASME B16.36 Face Types Orifice Plate Flange/ Weld Neck Orifice Flange/ Rtj Orifice Plate/ Socket Weld Orifice Flange/ Blind Orifice Plate/ Threaded Orifice Flange
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production Technique Forged/ Heat treated and machined
Manufacturer of Forged/ Threaded/ Screwed / Plate
Manufacturer Pressure Class Class 300 (lb) up to 20"
Class 600 (lb) up to 20"
Class 900 (lb) up to 16"
Class 1500 (lb) up to 10"
Class 2500 (lb) up to 8"
Flange Test Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector

Different Types Of Orifice Plates

different-types-of-orifice-plates
  • 1. Concentric Orifice Plate (Hole is in the center)
  • 2. Segmental Orifice Plate
  • 3. Eccentric Orifice Plate (Hole is off center)

Pressure Taps Of Orifice Plate

  • 1.Vena-contractive tap
  • 2.Radius tap
  • 3.Pipe And Full Flow taps
  • 4.Corner taps
  • 5.Flange tap
  • 6.Elbow tap

Restriction Orifice Symbol

restriction-orifice-symbol

Restriction Orifice Design Standard

restriction-orifice-design-standard
  • API 2531
  • ISO 5168
  • ISA RP 3.2
  • EC 60534-8-3
  • API MPMS 14.3.2
  • ISO 5024

Jack Bolts For Orifice Flanges

jack-bolts-for-orifice-flanges

Orifice Flange Jack Screw

orifice-flange-jack-screw
NPS Class 300 Class 400 Class 600 Class 900 Class 1500
Sizes Lengths Size Of Hole Sizes Lengths Size Of Hole Sizes Lengths Size Of Hole Sizes Lengths Size Of Hole Sizes Lengths Size Of Hole
1 5/8 2-3/4 11/16 5/8 2-3/4 11/16 5/8 2-3/4 11/16 5/8 3-1/4 3/4 5/8 3-1/4 3/4
1-1/4 5/8 2-3/4 11/16 5/8 2-3/4 11/16 5/8 2-3/4 11/16 5/8 3-1/4 3/4 5/8 3-1/4 3/4
1-1/2 5/8 2-3/4 11/16 5/8 2-3/4 11/16 5/8 2-3/4 11/16 5/8 3-1/4 3/4 5/8 3-1/4 3/4
2 5/8 2-3/4 11/16 5/8 2-3/4 11/16 5/8 2-3/4 11/16 5/8 3-1/4 3/4 5/8 3-1/4 3/4
2-1/2 5/8 2-3/4 13/16 5/8 2-3/4 13/16 3/4 2-3/4 13/16 5/8 3-1/2 3/4 5/8 3-1/2 3/4
3 3/4 2-3/4 13/16 3/4 2-3/4 13/16 3/4 2-3/4 13/16 3/4 3-1/4 7/8 3/4 3-3/4 7/8
4 3/4 2-3/4 13/16 3/4 3-1/4 7/8 3/4 3-1/4 7/8 3/4 3-1/2 7/8 3/4 4 7/8
5 3/4 2-3/4 7/8 3/4 3-1/4 7/8 3/4 3-1/2 7/8 3/4 3-3/4 7/8 3/4 5 7/8
6 3/4 2-3/4 7/8 7/8 3-1/2 1 7/8 4 1 1 4 1-1/8 1 5 1-1/8
8 3/4 3 7/8 7/8 4 1 7/8 4 1 1 4-1/2 1-1/8 1 5-1/2 1-1/8
10 1 3-1/2 1-1/8 7/8 4 1 7/8 4-1/2 1 1 4-1/2 1-1/8 1 6 1-1/8
12 1 3-1/2 1-1/8 7/8 4 1 7/8 4-1/2 1 1 5 1-1/8 1 7 1-1/8

Types Of Orifice Flange

orifice-plate-flange
Orifice Plate Flange
carbon-steel-orifice-flange
Carbon Steel Orifice Flange
ss-orifice-flange
SS Orifice Flange
weld-neck-orifice-flanges
Weld Neck Orifice Flange
orifice-tapping
Orifice Tapping
rtj-orifice-plate
Rtj Orifice Plate
restriction-orifice-flange
Restriction Orifice Flange
ro-flange
Ro Flange
socket-weld-orifice-flange
Socket Weld Orifice Flange
ring-joint-orifice-plate
Ring Joint Orifice Plate
eccentric-orifice-plate
Eccentric Orifice Plate
blind-orifice-plate
Blind Orifice Plate

Other Materials Of ASME B16.5 Weld Neck Flange

duplex-orifice-flange
Duplex Orifice Flange
titanium-orifice-flanges
Titanium Orifice Flanges
mild-steel-orifice-flange
Mild Steel Orifice Flange
nickel-alloy-orifice-flanges
Nickel Alloy Orifice Flanges
copper-orifice-flanges
Copper Orifice Flanges
inconel-orifice-flanges
Inconel Orifice Flanges
ductile-iron-orifice-flanges
Ductile Iron Orifice Flanges

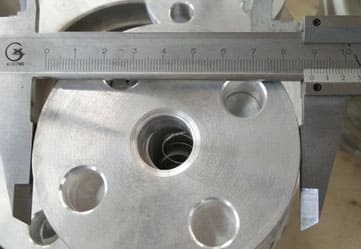

aluminum-orifice-flanges
Aluminum Orifice Flanges
alloy-steel-orifice-flanges
Alloy Steel Orifice Flanges
astm-a350-lf2-orifice-flanges
ASTM A350 LF2 Orifice Flanges
uns-s31803-orifice-flanges
UNS S31803 Orifice Flanges
super-duplex-orifice-flanges
Super Duplex Orifice Flanges

Orifice Flange Dimensions Class 300

Orifice Size in Inchch Orifice Size in mm Outer Diameter (O.D.) Orifice Flange Thickness Hub Outer Diameter Weld Neck Outer Diameter Length Of Welding Neck RF Diameter Height Of RF PCD Orifice Hole diameter Number of Bolts Bolt Size In UNC Stud Length Of RF Size Of Hole Stud Size In ISO Weight in Kilogram
A B C D E F G H I - - - - - - - -
1 25 125 36.6 54 33.4 81 50.8 2 88.9 6.4 4 5/8 125 3/4 M16 4.5
1 1/2 40 155 36.6 70 48.3 84 73 2 114.3 6.4 4 3/4 135 7/8 M20 6.5
2 50 165 36.6 84 60.3 84 92.1 2 127 6.4 8 5/8 125 3/4 M16 7
2 1/2 65 190 36.6 100 73 87 104.8 2 149.2 6.4 8 3/4 135 7/8 M20 7.5
3 80 210 36.6 117 88.9 87 127 2 168.3 9.5 8 3/4 135 7/8 M20 9.4
4 100 255 36.6 146 114.3 90 157.2 2 200 12.7 8 3/4 135 7/8 M20 13.2
6 150 320 36.6 206 168.3 98 215.9 2 269.9 12.7 12 3/4 135 7/8 M20 14.6
8 200 380 39.7 260 219.1 110 269.9 2 330.2 12.7 12 7/8 145 1 M24 30
10 250 445 46.1 321 273 116 323.8 2 387.3 12.7 16 1 165 1 1/8 M27 41
12 300 520 49.3 375 323.8 129 381 2 450.8 12.7 16 1 1/8 180 1 1/4 M30 62
14 350 585 52.4 425 355.6 141 412.8 2 514.4 12.7 20 1 1/8 185 1 1/4 M30 84
16 400 650 55.6 483 406.4 144 469.9 2 571.5 12.7 20 1 1/4 195 1 3/8 M33 111
18 450 710 58.8 533 457 157 533.4 2 628.6 12.7 24 1 1/4 205 1 3/8 M33 138
20 500 775 62 587 508 160 584.2 2 685.8 12.7 24 1 1/4 215 1 3/8 M33 171
24 600 915 68.3 702 610 167 692.2 2 812.8 12.7 24 1 1/2 240 1 5/8 M39 247

Class 600 Orifice Flange Dimensions

Orifice Size in Inchch Orifice Size in mm Outer Diameter (O.D.) Orifice Flange Thickness Hub Outer Diameter Weld Neck Outer Diameter Length Of Welding Neck RF Diameter Height Of RF PCD Orifice Hole diameter Number of Bolts Bolt Size In UNC Stud Length Of RF Size Of Hole Stud Size In ISO Weight in Kilogram
A B C D E F G H I - - - - - - - -
1 25 125 36.6 54 33.5 81 50.8 7 88.9 6.4 4 5/8 125 3/4 M16 5.5
1 1/2 40 155 36.6 70 48.3 84 73 7 114.3 6.4 4 3/4 135 7/8 M20 7.8
2 50 165 36.6 84 60.3 84 92.1 7 127 6.4 8 5/8 125 3/4 M16 8.3
2 1/2 65 190 36.6 100 73 87 104.8 7 149.2 6.4 8 3/4 135 7/8 M20 10.8
3 80 210 36.6 117 88.9 87 127 7 168.3 9.5 8 3/4 135 7/8 M20 12.6
4 100 275 38.1 152 114.3 102 157.2 7 215.9 12.7 8 7/8 150 1 M24 19
6 150 355 47.7 222 168.3 117 215.9 7 292.1 12.7 12 1 180 1 1/8 M27 37
8 200 420 55.6 273 219.1 133 269.9 7 349.2 12.7 12 1 1/8 195 1 1/4 M30 53
10 250 510 63.5 343 273 152 323.8 7 431.8 12.7 16 1 1/4 220 1 3/8 M33 86
12 300 560 66.7 400 323.8 156 381 7 489 12.7 20 1 1/4 230 1 3/8 M33 102
14 350 605 69.9 432 355.6 165 412.8 7 527 12.7 20 1 3/8 240 1 1/2 M36 150
16 400 685 76.2 495 406.4 178 469.9 7 603.2 12.7 20 1 1/2 260 1 5/8 M39 190
18 450 745 82.6 546 457.2 184 533.4 7 654 12.7 20 1 5/8 280 1 3/4 M42 240
20 500 815 88.9 610 508 190 584.2 7 723.9 12.7 24 1 5/8 300 1 3/4 M42 295
24 600 940 101.6 718 609.6 203 692.2 7 838.2 12.7 24 1 7/8 335 2 M48 365

Class 900 Orifice Flange Dimensions

Orifice Size in Inchch Orifice Size in mm Outer Diameter (O.D.) Orifice Flange Thickness Hub Outer Diameter Weld Neck Outer Diameter Length Of Welding Neck RF Diameter Height Of RF PCD Orifice Hole diameter Number of Bolts Bolt Size In UNC Stud Length Of RF Size Of Hole Stud Size In ISO Weight in Kilogram
A B C D E F G H I - - - - - - - -
1 25 150 38.1 52 33.5 83 50.8 7 101.6 6.4 4 7/8 150 1 M24 5.4
1 1/2 40 180 38.1 70 48.3 89 73 7 123.8 6.4 4 1 160 1 1/8 M27 7.8
2 50 215 38.1 105 60.3 102 92.1 7 165.1 6.4 8 7/8 150 1 M30 11.5
2 1/2 65 245 41.3 124 73 105 104.8 7 190.5 6.4 8 1 165 1 1/8 M27 15.8
3 80 240 38.1 127 88.9 102 127 7 190.5 9.5 8 7/8 150 1 M24 22
4 100 290 44.5 159 114.3 114 157.2 7 235 12.7 8 1 1/8 180 1 1/4 M30 22
6 150 380 55.6 235 168.3 140 215.9 7 317.5 12.7 12 1 1/8 195 1 1/4 M30 70
8 200 470 63.5 298 219.1 162 269.9 7 393.7 12.7 12 1 3/8 230 1 1/2 M36 119
10 250 545 69.9 368 273 184 323.8 7 469.9 12.7 16 1 3/8 240 1 1/2 M36 204
12 300 610 79.4 419 323.8 200 381 7 533.4 12.7 20 1 3/8 260 1 1/2 M36 303
14 350 640 85.8 451 355.6 213 412.8 7 558.8 12.7 20 1 1/2 280 1 5/8 M39 400
16 400 705 88.9 508 406.4 216 469.9 7 616 12.7 20 1 5/8 290 1 3/4 M42 510
18 450 785 101.9 565 457.2 229 533.4 7 685.8 12.7 20 1 7/8 330 2 M48 738
20 500 855 108 622 508 248 584.2 7 749.3 12.7 20 2 355 2 1/8 M52 932
24 600 1040 139.7 749 609.6 292 692.2 7 901.7 12.7 20 2 1/2 445 2 5/8 M64 1511

Class 1500 Orifice Flange Dimensions

Orifice Size in Inchch Orifice Size in mm Outer Diameter (O.D.) Orifice Flange Thickness Hub Outer Diameter Weld Neck Outer Diameter Length Of Welding Neck RF Diameter Height Of RF PCD Orifice Hole diameter Number of Bolts Bolt Size In UNC Stud Length Of RF Size Of Hole Stud Size In ISO Weight in Kilogram
A B C D E F G H I - - - - - - - -
1 25 150 38.1 52 33.5 83 50.8 7 101.6 6.4 4 7/8 150 1 M24 5.4
1 1/2 40 180 38.1 70 48.3 89 73 7 123.8 6.4 4 1 160 1 1/8 M27 7.8
2 50 215 38.1 105 60.3 102 92.1 7 165.1 6.4 8 7/8 150 1 M24 11.5
2 1/2 65 245 41.3 124 73 105 104.8 7 190.5 6.4 8 1 165 1 1/8 M27 15.8
3 80 265 47.7 133 88.9 117 127 7 203.2 9.5 8 1 1/8 185 1 1/4 M30 22
4 100 310 54 162 114.3 124 157.2 7 241.3 12.7 8 1 1/4 205 1 3/8 M33 22
6 150 395 82.6 229 168.3 171 215.9 7 317.5 12.7 12 1 3/8 265 1 1/2 M36 70
8 200 485 92.1 292 219.1 213 269.9 7 393.7 12.7 12 1 5/8 300 1 3/4 M42 119
10 250 585 108 368 273 254 323.8 7 482.6 12.7 12 1 7/8 345 1 M48 204
12 300 675 123.9 451 323.8 283 381 7 571.5 12.7 16 2 380 2 1/8 M52 303
14 350 750 133.4 495 355.6 298 412.8 7 635 12.7 16 2 1/4 415 2 3/8 M56 400
16 400 825 146.1 552 406.4 311 469.9 7 704.8 12.7 16 2 1/2 450 2 5/8 M64 510
18 450 915 162 597 457.2 327 533.4 7 774.7 12.7 16 2 3/4 500 2 7/8 M72 738
20 500 985 177.8 641 508 356 584.2 7 831.8 12.7 16 3 545 3 1/8 M76 932
24 600 1170 203.2 762 609.6 406 692.2 7 990.6 12.7 16 3 1/2 620 3 5/8 M90 1511

Class 2500 Orifice Flange Dimensions

Orifice Size in Inchch Orifice Size in mm Outer Diameter (O.D.) Orifice Flange Thickness Hub Outer Diameter Weld Neck Outer Diameter Length Of Welding Neck RF Diameter Height Of RF PCD Orifice Hole diameter Number of Bolts Bolt Size In UNC Stud Length Of RF Size Of Hole Stud Size In ISO Weight in Kilogram
A B C D E F G H I - - - - - - - -
1 25 160 38.1 57 33.5 92 50.8 7 108 6.4 4 7/8 150 1 M24 6.5
1 1/2 40 205 44.5 79 48.3 111 73 7 146 6.4 4 1 1/8 180 1 1/4 M30 13
2 50 235 50.8 95 60.3 127 92.1 7 171.4 6.4 8 1 185 1 1/8 M27 19
2 1/2 65 265 57.2 114 73 143 104.8 7 196.8 6.4 8 1 1/8 205 1 1/4 M30 24
3 80 305 66.7 133 88.9 168 127 7 228.6 9.5 8 1 1/4 230 1 3/8 M33 43
4 100 355 76.2 165 114.3 190 157.2 7 273 12.7 8 1 1/2 260 1 5/8 M39 66
6 150 485 108 235 168.3 273 215.9 7 368.3 12.7 8 2 350 2 1/8 M52 172
8 200 550 127 305 219.1 318 269.9 7 438.2 12.7 12 2 385 2 1/8 M52 261
10 250 675 165.1 375 273 419 323.8 7 539.8 12.7 12 2 1/2 490 2 5/8 M64 485
12 300 760 184.2 441 323.8 464 381 7 619.1 12.7 12 2 3/4 540 2 7/8 M72 730

Orifice Flange Drawing

orifice-flange-drawing

Orifice Flange Assembly

orifice-flange-assembly-drawing

ASME B16.36 Material

Stainless Steel Orifice Flange Grade

steel-304-flanges
Stainless Steel 304 Flanges
steel-310-flanges
Stainless Steel 310 Flanges
steel-316-flanges
Stainless Steel 316 Flanges
steel-321-flanges
Stainless Steel 321 Flanges
steel-347-flanges
Stainless Steel 347 Flanges
steel-410-flanges
Stainless Steel 410 Flanges
steel-316l-flanges
Stainless Steel 316L Flanges
steel-304l-flanges
Stainless Steel 304L Flanges
steel-304h-flanges
Stainless Steel 304H Flanges

Carbon Steel Orifice Flange Grades

cs-astm-a105-flange
ASTM A105 Flange
cs-astm-a350-lf1-flanges
ASTM A350 LF1 Flanges
cs-astm-a350-lf2-flanges
ASTM A350 LF2 Flanges
cs-astm-a350-lf3-flanges
ASTM A350 LF3 Flanges
cs-astm-a350-lf5-flanges
ASTM A350 LF5 Flanges
cs-astm-a350-lf6-flanges
ASTM A350 LF6 Flanges
cs-astm-a694-f70-flange
ASTM A694 F70 Flange
cs-astm-a694-f42-flange
ASTM A694 F42 Flange
cs-astm-a694-f46-flange
ASTM A694 F46 Flange
cs-astm-a694-f50-flange
ASTM A694 F50 Flange
cs-astm-a694-f52-flange
ASTM A694 F52 Flange
cs-astm-a694-f60-flange
ASTM A694 F60 Flange

Alloy Steel Orifice Flange Grades

alloy-a182-f1-flange
ASTM A182 F1 Flange
alloy-a182-f5-flange
ASTM A182 F5 Flange
alloy-a182-f9-flange
ASTM A182 F9 Flange
alloy-a182-f11-flange
ASTM A182 F11 Flange
alloy-a182-f22-flange
ASTM A182 F22 Flange
alloy-a182-f91-flange
ASTM A182 F91 Flange
alloy-a182-f92-flange
ASTM A182 F92 Flange
alloy-a707-l3-cl3-flanges
ASTM A707 L3 CL3 Flanges

Orifice Flange Application

  • Specialty Chemicals
  • Power Generation
  • Condensers
  • Chemical Equipment
  • Gas Processing
  • Pulp and Paper Industry
  • Sea Water Equipment
  • Pharmaceutical Equipment
  • Off-Shore Oil Drilling Companies
  • Petrochemicals
  • Heat Exchangers
  • Pharmaceuticals

Orifice Flange Weight Chart

orifice-flange-weight-chart

Orifice Flange Pressure Rating

asme-b16-5-pressure-ratings

Orifice Flange Thickness

Normal Size Of Steel Pipe Outer Diameter (O.D.) 10 Schedule 20 Schedule 30 Schedule STD Wall 40 Schedule 60 Schedule EXT Hvy 80 Schedule 100 Schedule 120 Schedule 140 Schedule 160 Schedule XX Hvy
½ 0.84 0.083 ... ... 0.109 0.109 ... 0.147 0.147 ... ... ... 0.188 0.294
¾ 1.05 0.083 ... ... 0.113 0.113 ... 0.154 0.154 ... ... ... 0.219 0.308
1 1.315 0.109 ... ... 0.133 0.133 ... 0.179 0.179 ... ... ... 0.25 0.358
1 ¼ 1.66 0.109 ... ... 0.14 0.14 ... 0.191 0.191 ... ... ... 0.25 0.382
1 ½ 1.9 0.109 ... ... 0.145 0.145 ... 0.2 0.2 ... ... ... 0.281 0.4
2 2.375 0.109 ... ... 0.154 0.154 ... 0.218 0.218 ... ... ... 0.344 0.436
2 ½ 2.875 0.12 ... ... 0.203 0.203 ... 0.276 0.276 ... ... ... 0.375 0.552
3 3.5 0.12 - - 0.216 0.216 - 0.3 0.3 - - - 0.438 0.6
3 ½ 4 0.12 - - 0.226 0.226 - 0.318 0.318 - - - - 0.636
4 4.5 0.12 - - 0.237 0.237 - 0.337 0.337 - 0.438 - 0.531 0.674
5 5.563 0.134 - - 0.258 0.258 - 0.375 0.375 - 0.5 - 0.625 0.75
6 6.625 0.134 - - 0.28 0.28 - 0.432 0.432 - 0.562 - 0.719 0.864
8 8.625 0.148 0.25 0.277 0.322 0.322 0.406 0.5 0.5 0.594 0.719 0.812 0.906 0.875
10 10.75 0.165 0.25 0.307 0.365 0.365 0.5 0.5 0.594 0.719 0.844 1 1.125 1
12 12.75 0.18 0.25 0.33 0.375 0.406 0.562 0.5 0.688 0.844 1 1.125 1.312 1
14 14 0.25 0.312 0.375 0.375 0.438 0.594 0.5 0.75 0.938 1.094 1.25 1.406 -

Class 300 Orifice Flange Bolt Chart

NPS B.C. Bolts Number Holes Diameter Diameter Of Stud Bolt Stub Bolt Length
1 88.9 4 11/16 5/8 125
1½ 114.3 4 13/16 3/4 135
2 127.0 8 11/16 5/8 125
2½ 149.2 8 13/16 3/4 135
3 168.3 8 13/16 3/4 135
4 200.0 8 13/16 3/4 135
6 269.9 12 7/8 3/4 135
8 330.2 12 1 7/8 145
10 387.4 16 1.1/8 1 165
12 450.8 16 1¼ 1.1/8 180
14 514.4 20 1¼ 1.1/8 185
16 571.5 20 1.3/8 1¼ 195
18 628.6 24 1.3/8 1¼ 205
20 685.8 24 1.3/8 1¼ 215
24 812.8 24 1.5/8 1½ 240

Class 600 Orifice Flange Bolt Chart

NPS B.C. Bolts Number Holes Diameter Diameter Of Stud Bolt Stub Bolt Length
1 88.9 4 11/16 5/8 125
1½ 114.3 4 13/16 3/4 135
2 127.0 8 11/16 5/8 125
2½ 149.2 8 13/16 3/4 135
3 168.3 8 13/16 3/4 135
4 215.9 8 1 7/8 150
6 292.1 12 1.1/8 1 180
8 349.2 12 1¼ 1.1/8 195
10 431.8 16 1.3/8 1¼ 220
12 489.0 20 1.3/8 1¼ 230
14 527.0 20 1½ 1.3/8 240
16 603.2 20 1.5/8 1½ 260
18 654.0 20 1¾ 1.5/8 280
20 723.9 24 1¾ 1.5/8 300
24 838.2 24 2 1.7/8 335

Class 900 Orifice Flange Bolt Chart

NPS B.C. Bolts Number Holes Diameter Diameter Of Stud Bolt Stub Bolt Length
1 88.9 4 11/16 5/8 125
1½ 114.3 4 13/16 3/4 135
2 127.0 8 11/16 5/8 125
2½ 149.2 8 13/16 3/4 135
3 190.5 8 1 7/8 150
4 235.0 8 1¼ 1.1/8 180
6 317.5 12 1¼ 1.1/8 195
8 393.7 12 1½ 1.3/8 230
10 469.9 16 1½ 1.3/8 240
12 533.4 20 1½ 1.3/8 260
14 558.8 20 1.5/8 1½ 280
16 616.0 20 1¾ 1.5/8 290
18 685.8 20 2 1.7/8 330
20 749.3 20 2.1/8 2 355
24 901.7 20 2 5/8 2½ 445

Class 1500 Orifice Flange Bolt Chart

NPS B.C. Bolts Number Holes Diameter Diameter Of Stud Bolt Stub Bolt Length
1 101.6 4 1 7/8 150
1½ 123.8 4 1.1/8 1 160
2 165.1 8 1 7/8 150
2½ 190.5 8 1.1/8 1 165
3 203.2 8 1¼ 1.1/8 185
4 241.3 8 1.3/8 1¼ 205
6 317.5 12 1½ 1.3/8 265
8 393.7 12 1¾ 1.5/8 300
10 482.6 12 2 1.7/8 345
12 571.6 16 2.1/8 2 380
14 635.0 16 2 3/8 2¼ 415
16 704.8 16 2 5/8 2½ 450
18 774.7 16 2 7/8 2¾ 500
20 831.8 16 3.1/8 3 545
24 990.6 16 3.5/8 3½ 620

Class 2500 Orifice Flange Bolt Chart

NPS B.C. Bolts Number Holes Diameter Diameter Of Stud Bolt Stub Bolt Length
1 108.0 4 1 7/8 150
1½ 146.0 4 1¼ 1.1/8 180
2 171.4 8 1.1/8 1 185
2½ 196.8 8 1¼ 1.1/8 205
3 228.6 8 1.3/8 1¼ 230
4 273.0 8 1.5/8 1½ 260
6 368.3 8 2.1/8 2 350
8 438.2 12 2.1/8 2 385
10 539.8 12 2 5/8 2½ 490
12 619.1 12 2 7/8 2¾ 540

ASME B16.36 Orifice Flange Tolerances

ASME B16.36 Tolerances
D1 & D2 = ± 1% D3 = ± 1 (millimeter) D4 = 0/-0.4 (millimeter) L = ± 0.1 (millimeter) P = ± 0.1 (millimeter) S = ± 0.1 (millimeter)

Orifice Flange Gasket

slip-on-flange-gasket
(Normal Size Of Steel Pipes) In Inch (I.D.) Inner Daimeter Gasket
 (O.D.) Outer Daimeter Gasket
Class 150#/ LB Class 300#/ LB Class 400#/ LB Class 600#/ LB Class 900#/ LB
1/2 0.84 1.875 2.125 2.125 2.125 2.50
3/4 1.06 2.25 2.625 2.625 2.625 2.75
1 1.31 2.625 2.875 2.875 2.875 3.125
1 1/4 1.66 3 3.25 3.25 3.25 3.50
1 1/2 1.91 3.375 3.75 3.75 3.75 3.875
2 2.38 4.125 4.375 4.375 4.375 5.625
2 1/2 2.88 4.875 5.125 5.125 5.125 6.50
3 3.50 5.375 5.875 5.875 5.875 6.625
4 4.50 6.875 7.125 7.00 7.625 8.125
5 5.56 7.75 8.50 8.375 9.50 9.75
6 6.62 8.75 9.875 9.75 10.50 11.375
8 8.62 11 12.125 12.00 12.625 14.125
10 10.75 13.375 14.25 14.125 15.75 17.125
12 12.75 16.125 16.625 16.50 18.00 19.625

Orifice Plate Flange Dimensions

orifice-plate-flange-dimensions
Logo

Established in 1999, Royal Steel India is one of the Leading Manufacturers, Suppliers and Exporters of a comprehensive range of Flanges and Pipe Fittings products.

About

Our Products

Contact us

Copyright © 2024 Royal Steel India | All Right Reserved.

WhatsApp
9820135616
Email
sales@royalsteelindia.com
