Material Composition :

Copper-nickel flanges are typically made from an alloy that contains copper as the primary element, with a significant percentage of nickel and sometimes other elements like iron and manganese. Common compositions include 90-10 (90% copper, 10% nickel) or 70-30 (70% copper, 30% nickel). These alloys offer excellent resistance to corrosion, erosion, and biofouling in seawater environments.

Corrosion Resistance :

One of the main advantages of copper-nickel flanges is their exceptional resistance to various forms of corrosion, including seawater corrosion, crevice corrosion, and stress corrosion cracking. This property makes them highly suitable for marine applications, such as shipbuilding, offshore oil and gas platforms, and desalination plants.

Strength and Durability :

Copper-nickel alloys possess good mechanical strength, making them suitable for use in high-pressure and high-temperature environments. They are also known for their durability and longevity, contributing to the overall reliability of the piping system.

Types of Flanges :

Copper-nickel flanges come in various types based on their connection methods and applications, such as weld neck flanges, slip-on flanges, socket weld flanges, blind flanges, and threaded flanges. Each type serves a specific purpose in piping systems, offering ease of installation, secure connections, or closure.

Applications :

These flanges find widespread application in industries requiring resistance to corrosion and erosion. Typical applications include seawater piping systems, heat exchangers, power plants, chemical processing plants, and various marine-related equipment.

Maintenance and Care :

While copper-nickel alloys are highly resistant to corrosion, proper maintenance, including regular cleaning and inspection, can help ensure their long-term performance and reliability in service.

Copper Nickel Alloy Socket Weld Flanges and Copper Nickel Alloy Threaded Flanges designed by us traces its usage in the making of Pump Impellers for oil refining and valve bodies. Based on the precise requirements of our customers, we manufacture all of our Copper Nickel Flanges in varying sizes and dimensions, one such being Copper Nickel Alloy Lap Joint Flanges.

Copper Nickel Alloy Spectacle Blind and Copper Nickel Alloy Reducing Flanges are made adding a tinge of chromium and molybdenum. Addition of Aluminium advances the hot and cold workability of Copper Nickel Alloy Forged Flanges.

Copper Nickel Flanges Standard Specification

Specifications ASTM B151 / ASME SB151
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Grades

Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640

Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size 1/2″NB TO 60″NB
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Types Of Copper Nickel Flange

Copper Nickel Flanges Standard Table

COPPER NICKEL FLANGES MATERIAL EEMUA DIN ANSI

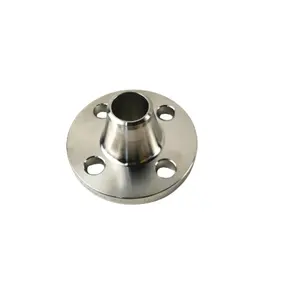

COMPOSITE WELD NECK INNER FLANGES CuNi 145 DIN 86037
COMPOSITE WELD NECK BACKING FLANGES Carbon steel 145 DIN 86037
COMPOSITE SLIP ON INNER FLANGES CuNi 145 DIN 86036
COMPOSITE SLIP ON BACKING FLANGES Carbon steel 145 DIN 86036
SOLID WELD NECK CuNi 145 DIN 2632/2633 B 16-5
SOLID SLIP ON CuNi 145 DIN 86033 B 16-5
SOLID BLIND CuNi B 16-5
SOLID SOCKET WELDING CuNi B 16-5
THREADED WELDING CuNi B 16-5

DIN Standard Copper Nickel Flanges

DIN standard flanges are most common standard in shipbuilding.

There are four main standards as below:

  • DIN 86037 Composite Weld Neck Flanges
  • DIN 86036 Composite Slip On Flanges
  • DIN 86033 Copper Nickel Slip On Flanges
  • DIN 2632/2633 Copper Nickel Weld Neck Flanges

ASME B16.5 Copper Nickel C70600 Flanges

ASME B16.5 standard C70600 flanges are mainly used on the oil field.

There are five main flange type as below:

  • Copper Nickel Weld Neck Flanges
  • Copper Nickel Slip On Flanges
  • Copper Nickel Socket Weld Flanges
  • Copper Nickel Threaded Flanges
  • Copper Nickel Blind Flanges

Copper Nickel Flanges Physical Properties

Values Units CuNi 90/10 CuNi 70/30
Density (20°C) kg/m3 8900 8900
Electrical Resistivity (20°C annealed) μΩ.cm 19 34
Thermal Conductivity (20°C to 200°C) W/m.°K 50 30
Coefficient of Expansion (20°C to 200°C) C x 10-6 17 16
Modulus of Elasticity (20°C annealed) Mpa 126 000 126 000
Annealing Temperature °C 760 – 800 760 820
Melting Interval °C 1100 – 1150 1180 1240
Magnetic Permeability (20°C annealed) 1.08 – 1.80 < 1.05

Copper Nickel Pipe Mechanical Properties

Typical Values Units CuNi 90/10 CuNi 70/30
Tensile Strength (UTS),(Rm) MPa > 310 > 350
ksi > 44 > 51
Proof Stress (YS 0,2), (Rp 0,2) MPa > 110 > 130
ksi > 16 > 19
Elongation (E 5,65 VS) % > 35 > 30
Hardness (HB10 D2 ) > 70 > 80

Copper Nickel Flanges Application

The applications of copper-nickel flanges are widely found among different industries. They are used in

  • Shipbuilding: Copper nickel pipe flanges shipbuilding , especially din standard copper nickel flanges. These projects are based on sea or river where flanges play the vital role to protect pipe fittings from dangerous water substances.
  • Desalination plants: It is commonly used in agriculture, minerals and metallurgy projects where these flanges protect objects from damages of water, sand, and defective soil ingredients.
  • Power Generation: The plants and projects established to create power rely on such flanges because these nickel-copper flanges are sturdy enough to work in highly corrosive environments.

However, other industries where such flanges are widely used are seawater projects, armament industry, hulls of ships and boats.

Copper Nickel Flanges Benefits

  • Solid and extremely durable.
  • Easily fixed and modified with pipe fittings.
  • Extend Pipe Lifecycle
  • Resistant to water and other corrosive ingredients
  • It can perform efficiently under corrosive environments.
  • Prevents antifouling substances to stick with the object
  • High Quality
  • Economical
